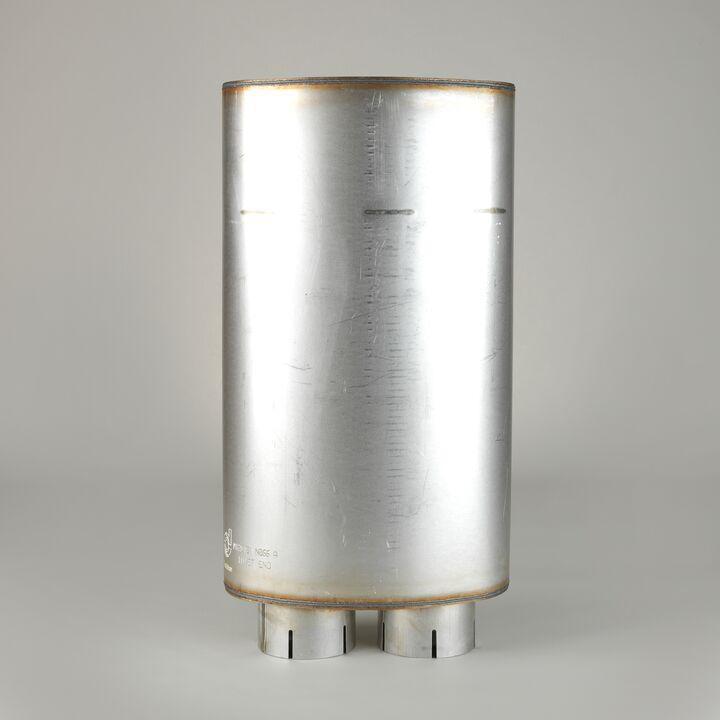

SILENCIADOR, OVALADO ESTILO 5
Ref: M120131446,64 €
Hay existencias
Additional Information
| Peso | 14,9912 kg |
|---|---|
| Style | Style 5 |
| Inlet Diameter | 127.64 MM |
| Outlet Diameter | 127.64 MM |
| Body Diameter Maximum | 381 MM |
| Atributos | |
|---|---|
| Flow Direction | Inlet-Outlet |
| Inlet Diameter | 127.64 mm |
| Outlet Diameter | 127.64 mm |
| Body Diameter Minimum | 254 mm |
| Body Diameter Maximum | 381 mm |
| Body Length | 647.7 mm |
| Overall Length | 746.4 mm |
| Rated Flow LR | 47.6 m³/min |
| Rated Flow MR | 67.3 m³/min |
| Rated Flow HR | 82.4 m³/min |
| Back Pressure Low-Range | 25 mm Hg |
| Back Pressure Mid-Range | 51 mm Hg |
| Back Pressure High-Range | 76 mm Hg |
| Attenuation LR | 8 dBA |
| Attenuation HR | 12 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 5 |
| Price Type | E |
