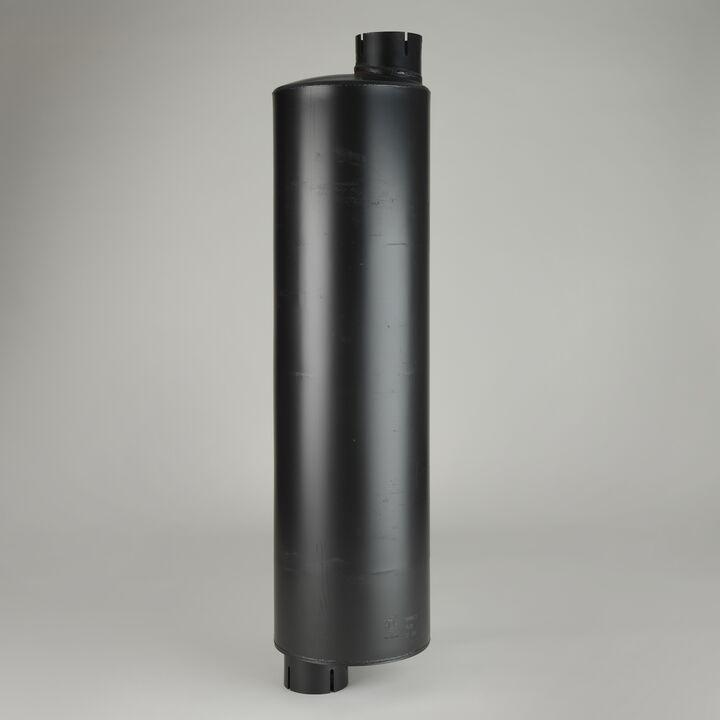

SILENCIADOR, REDONDO 2
Ref: M100043470,73 €
Hay existencias
Additional Information
| Peso | 14,6057 kg |
|---|---|
| Style | Style 2 |
| Inlet Diameter | 102.11 MM |
| Outlet Diameter | 102.11 MM |
| Body Diameter Maximum | 256.44 MM |
| Atributos | |
|---|---|
| Flow Direction | Inlet-Outlet |
| Inlet Diameter | 102.11 mm |
| Outlet Diameter | 102.11 mm |
| Body Diameter Maximum | 256.44 mm |
| Body Length | 898.4 mm |
| Overall Length | 1060.45 mm |
| Rated Flow LR | 27.8 m³/min |
| Rated Flow MR | 39.4 m³/min |
| Rated Flow HR | 48.2 m³/min |
| Back Pressure Low-Range | 25 mm Hg |
| Back Pressure Mid-Range | 51 mm Hg |
| Back Pressure High-Range | 76 mm Hg |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 2 |
| Price Type | E |
