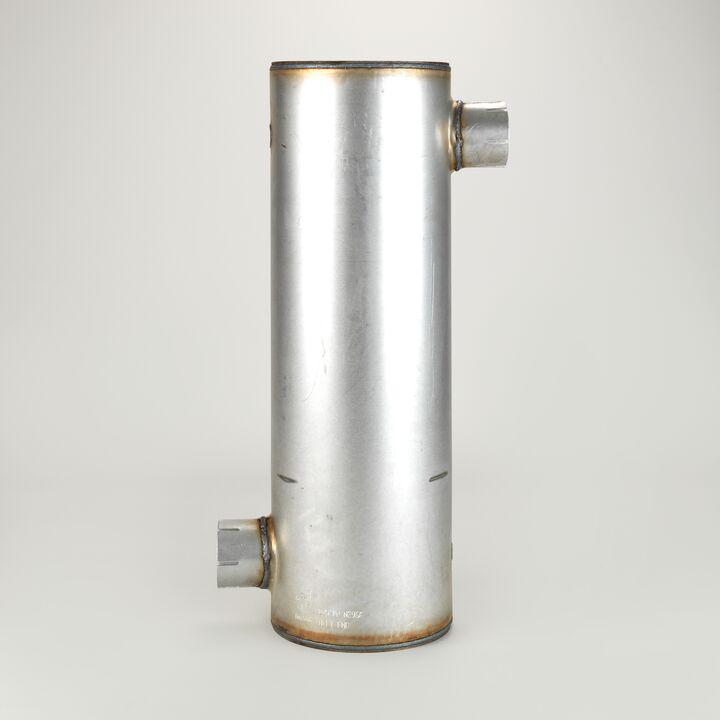

MUFFLER, ROUND STYLE 6
Ref: M085208255,39 €
Hay existencias
Descripción
MUFFLER, ROUND STYLE 6
Additional Information
| Peso | 8,6772 kg |
|---|---|
| Style | Style 6 |
| Inlet Diameter | 76.66 MM |
| Outlet Diameter | 76.66 MM |
| Body Diameter Maximum | 214.88 MM |
| Atributos | |
|---|---|
| Flow Direction | Inlet-Outlet |
| Inlet Diameter | 76.66 mm |
| Outlet Diameter | 76.66 mm |
| Body Diameter Maximum | 214.88 mm |
| Body Length | 508 mm |
| Overall Length | 685.8 mm |
| Rated Flow LR | 17 m³/min |
| Rated Flow MR | 18.4 m³/min |
| Rated Flow HR | 29.5 m³/min |
| Back Pressure Low-Range | 25 mm Hg |
| Back Pressure Mid-Range | 51 mm Hg |
| Back Pressure High-Range | 76 mm Hg |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 6 |
| Price Type | E |
